Toolbar and settings¶
Labels below match napari-vipp 0.12.0a3. Controls can collapse into Settings when the window is narrow.
Workflow toolbar¶
| Control | Effect |
|---|---|
| New workflow… | Reset after confirmation to one unbound Image Source on an otherwise empty graph. |
| Open example… | Open one of 13 bundled templates; ordinary examples configure sample sources, while the batch example creates a safe working copy on request. |
| Load workflow… | Open an external or previously saved workflow JSON. A valid attached batch configuration restores and opens Batch workspace without running a preview. |
| Save workflow… | Save graph structure, parameters, layout, and selected UI state—not computed arrays. When a Batch workspace is active, choose whether to attach its versioned configuration to the same workflow JSON. |
| Batch workspace… | Open or return to the retained local-collection setup, optional representative preview, run progress, final status, and provenance view. This is the sole Batch workspace entry and is visually separated between workflow loading and the export actions. |
| Export Python… | Generate a headless script using supported operation and I/O calls. |
| Export OME dataset… | Save one reference image with associated graph label outputs. |
| Tunnels… | Manage named graph outputs and subscribers. |
| Auto structure graph | Apply a one-shot source-to-sink layout; undo restores positions. |
| Focus | Recover the graph center without changing zoom, selection, layout, cache state, or undo history. |
| Refresh | Re-evaluate ordinary automatic graph state. |
| Calculate all | Calculate manual nodes that are not current. During isolated tuning, first apply the tuned result and release the temporary downstream boundary. |
| Undo / Redo | Reverse or restore supported workflow edits. |
Display settings¶
| Setting | Choices / meaning |
|---|---|
| Preview mode | Slice, MIP, or Off for graph/inspector previews. |
| Thumbnail contrast | Controls thumbnail contrast behavior; it does not alter processed data. |
| Contrast range | Controls how contrast scope is estimated. |
| Monochrome colormap | Changes display of monochrome previews only. |
| Link napari/VIPP sliders | Synchronizes napari dimensions and VIPP preview sliders. |
| Save thumbnail visibility in workflows | Includes per-node thumbnail visibility in workflow UI state. |
| Port labels | Ambiguous only (default) labels multi-input or multi-output nodes, Show all labels every port, and Hide all removes persistent labels. |
| Graph zoom | Scales graph cards; reset returns to 100%. |
Long port names are shortened on the card and retain their full text in a tooltip. Changing the label mode can make an already tightly packed layout overlap; VIPP reports the number of overlapping card pairs in the status bar. Use Auto structure graph to make label-aware space, or move the affected cards manually. Label visibility is a graph-display choice and never changes connections or processed data.
Execution and memory settings¶
| Setting | Meaning |
|---|---|
| Run all in BG | Checked: dispatch every graph recompute to background processing. Unchecked: use adaptive execution, keeping small ordinary work immediate while backgrounding known expensive operations and large inputs. |
| Cache mode | Keep all outputs, use Smart interactive cache, or use Low-memory mode. |
| Auto memory guard | Switches away from keep-all and prunes optional outputs if the configured cache share is exceeded. |
| Cache limit | Share of free-or-reclaimable memory used by the keep-all cache before the guard acts. |
| Keep output cached | Per-node request to retain an important result in Smart/Low-memory modes. |
| Auto Recalculate | Re-runs a selected manual node when upstream state changes; use cautiously for expensive work. |
Cancel prevents queued reruns and ignores the active result. It asks cooperative work to stop, but cannot forcibly interrupt every NumPy, SciPy, or scikit-image call already executing.
The current adaptive large-input boundary is 4,000,000 elements or 32 MiB, whichever is reached first. This applies even when Run all in BG is unchecked. Exact threshold diagnostics, Auto Contrast, colocalization density, and generated-layer contrast calculations also leave the user-interface thread when their inputs are large.
Background execution changes where work runs, not the method or the values it uses. Exact operations still inspect the complete required population. They may consume CPU time and memory while napari remains responsive.
Tune one node in isolation¶
Tune node in isolation is available in the selected-node inspector and the node context menu. The selected node must have a coherent cached result, and no dirty edit, pipeline calculation, source load, or batch run can be pending or in flight. Downstream nodes do not all need to have outputs.
While the session is active, parameter edits recalculate the selected node but pause propagation beyond it. The tuned node is the bright-amber actionable frontier. Its downstream closure is darker amber and labelled as waiting; those cards keep their last coherent results when they have them and otherwise remain unavailable. Neither case may be interpreted as a result of the new parameter values.
- Apply and continue keeps the latest parameters and local result, releases the boundary, and resumes calculation from the node's direct descendants.
- Cancel tuning restores the parameters, output, and execution state that were current when the session began without recalculating the held branch.
- Calculate all applies the current tuning result before performing its ordinary automatic and manual-node scheduling.
Only one node can be isolated at a time. A graph, layout, note, workflow-load, undo/redo, or other history-backed edit first commits the current tuning result, so cancellation cannot cross graph revisions. The isolation boundary and its restoration snapshot are transient session state; they are not written to workflow JSON.
Inspector surfaces¶
Depending on the selected node/output, the inspector can show parameters, execution state, output metadata/history, output and input histograms, label volume distribution, colocalization scatter, table preview, auto contrast, Pin selected, and Save selected output….
Numeric parameter entry¶
Numeric spinners accept direct keyboard entry as well as their step buttons and
paired sliders. Floating-point fields accept decimal points or commas and
scientific notation such as 2e-4; sufficiently small non-zero values are also
displayed in scientific notation. A slider is an exploration window, not
necessarily the full valid entry range. Right-click a numeric field and choose
Reset to default to restore that operation's declared default.
Manual execution colors¶
Manual/cached execution barriers apply to every VIPP operation that uses the manual policy, including measurements, graph analysis, colocalization, and deconvolution.
| Graph color | Meaning | Action |
|---|---|---|
| Bright amber | This is the first manual node stopping the branch. It has never been calculated, or its cached result is stale. | Select this node and choose Calculate or Recalculate, or use Calculate all. |
| Dark amber | This downstream node is also stale, but it is waiting for the bright-amber upstream barrier. VIPP retains its last coherent cached result when one exists; otherwise it remains unavailable. | Resolve the bright-amber node first; this node will then run or become the next actionable barrier. |

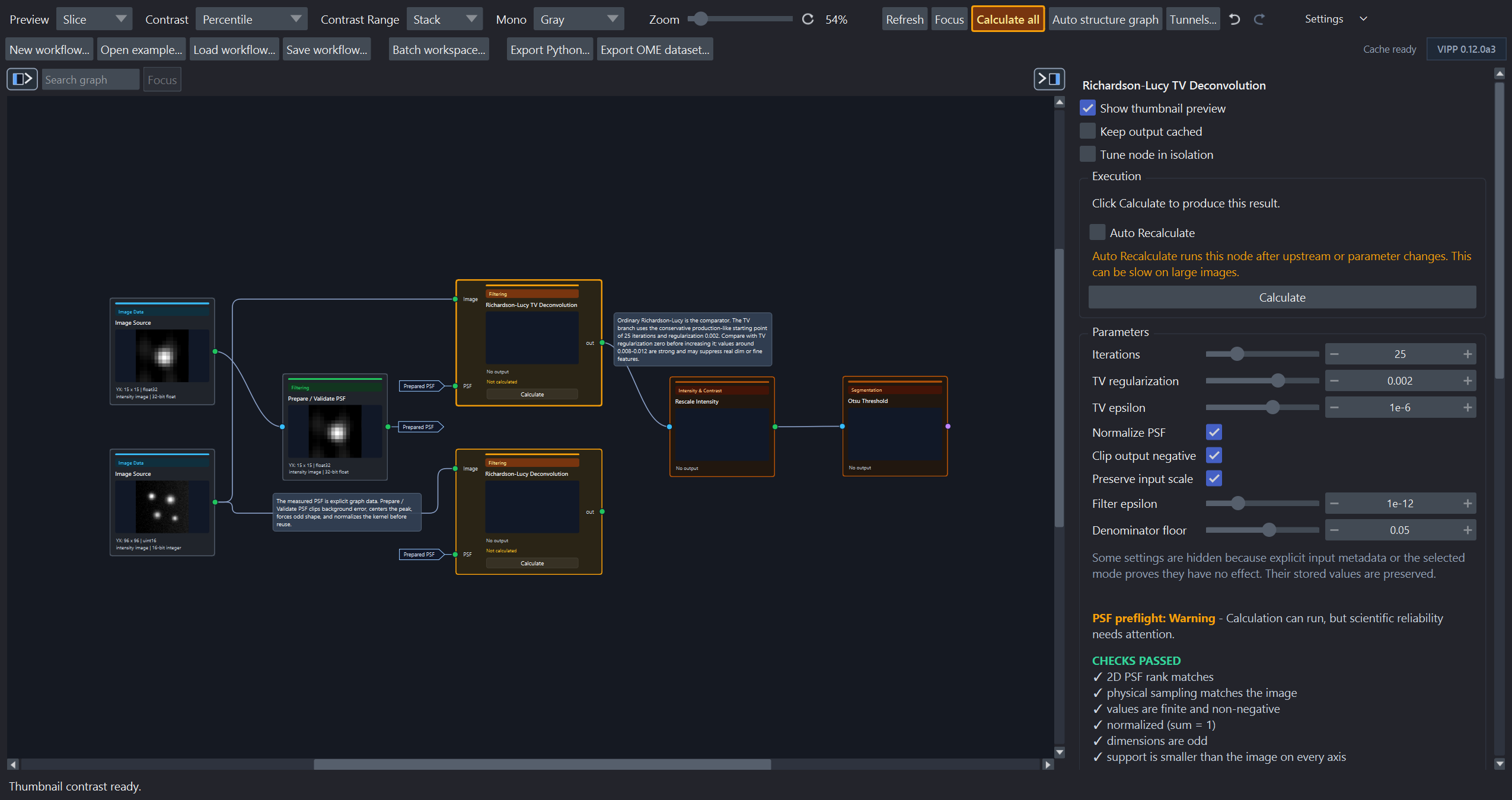

The two deconvolution branches are actionable. Rescale Intensity and Otsu Threshold wait behind the selected RL-TV branch and are not the source of the problem.
The toolbar Calculate all button also turns bright amber while an uncalculated or stale manual frontier needs attention. It returns to the normal toolbar style when no such action remains. A node already configured for Auto Recalculate does not trigger this user-action prompt while VIPP is handling it automatically.
This distinction also applies during background execution. A dark-amber node does not show a processing spinner until it is actually runnable. Once that node finishes updating, it returns to its normal current color immediately while later nodes continue calculating; it does not remain dark amber until the whole branch finishes. Every completed card receives a run-scoped execution state and sampled thumbnail. Selecting, pinning, or inspecting tables and metadata uses the same newly completed run-scoped payload when the active cache policy already retains that node. Low-memory pruning remains in force for other intermediates, which follow the normal cache-restore behavior when selected. VIPP still commits the scientific workflow cache only after accepting the complete background run. Cancelling, superseding, or editing during a run discards these temporary presentation updates and restores the last coherent cache view.
