Segmentation And Label Cleanup

Segmentation workflows usually turn an intensity image into a mask, then into labels.

Basic Pattern

For exact histogram populations, Minimum/ImageJ behavior, and numeric limits, see intensity and threshold controls.

Image Source
  -> Extract Channel or Split Channels
  -> optional background correction / denoising
  -> threshold
  -> morphology cleanup
  -> Label Connected Components
  -> label filtering

Recommended First Graph

Image Source
  -> Split Channels
  -> Gaussian Blur
  -> Otsu Threshold
  -> Fill Holes
  -> Remove Outliers (Binary)
  -> Remove Small Objects
  -> Label Connected Components
  -> Filter Labels By Volume

Key Nodes

Step	Common nodes
Channel selection	Extract Channel, Split Channels
Smoothing	Gaussian Blur, Gaussian Blur 3D, Median Filter, Sigma Filter, Non-Local Means
Background	Rolling-Ball Background, Subtract Background
Threshold	Otsu Threshold, Triangle Threshold, Li Threshold, Yen Threshold, Binary Threshold, ImageJ Default Threshold (8-bit), local threshold nodes
Mask cleanup	Fill Holes, Remove Outliers (Binary), Remove Small Objects, morphology nodes
Label creation	Label Connected Components, watershed nodes
Label cleanup	Clear Border Objects, Filter Labels By Volume, Filter Labels By Property, Relabel Sequential

How Global Automatic Thresholds Use The Data

Otsu Threshold, Triangle Threshold, Yen Threshold, Isodata Threshold, and Minimum Threshold calculate from every finite value in the selected scope. VIPP does not estimate these thresholds from a pixel sample.

Input	Scientific behavior
Boolean mask	The input is already a segmentation, so VIPP preserves its True/False decisions instead of thresholding it again.
Integer image	Every native integer level from the observed minimum to maximum receives its own bin. This is exact for spans of up to 65,536 levels.
Floating-point image	All finite values are counted into the saved Float histogram bins setting: 2–65,536 bins, with 256 as the default.
Li threshold	Li operates iteratively on the raw finite intensity values and does not have a histogram-bin setting. Integer inputs retain exact native offsets; a relative span wider than 2^53 reports an error because Li's float64 iteration cannot represent every level faithfully.

For a wide integer image whose observed range spans more than 65,536 levels, VIPP stops with an explanatory error. It does not silently merge integer levels. Convert or rescale deliberately to uint16 or floating point, record that step, and inspect its effect before thresholding.

NaN, positive infinity, and negative infinity are excluded while an automatic threshold is calculated. Those pixels become False (background) in the output mask. An empty input or one containing no finite values reports an error instead of receiving an invented cutoff.

The float bin count is a method parameter

For floating-point data, changing Float histogram bins can change the threshold and the resulting mask. The value is saved in the workflow. The bins drawn in the inspector are a separate display choice and do not replace this setting.

Practical bin guidance

• For uint8, uint16, or another integer image with a range of at most 65,536 levels, leave Float histogram bins alone: integer levels are counted natively regardless of that float-only setting.
• For floating-point images, start with the saved default of 256. On the development set, compare scientifically plausible alternatives such as 256, 1,024, and 4,096 when the decision appears bin-sensitive.
• Do not assume that the largest allowed value is automatically best. More bins can make a sparse or noisy histogram less stable.
• Freeze and report the selected value with the threshold scope and preprocessing steps.

For example, a methods record might state: “Otsu thresholding used the complete float32 stack with 1,024 histogram bins; non-finite pixels were treated as background.”

ImageJ Default Threshold is a separate conversion path

ImageJ Default Threshold (8-bit) is an explicit experimental compatibility node targeting ImageJ 1.54p's modified IsoData (Default) behavior. It first follows the declared per-plane 8-bit conversion for scalar uint8, uint16, or float32, then thresholds that result. It does not change the generic VIPP Otsu, Triangle, Li, Yen, Isodata, or Minimum nodes.

The public node no longer exposes a method dropdown. An older saved workflow that selected ImageJ Triangle retains that distinct calculation as fixed legacy compatibility; loading does not silently replace it with Default. Use the new public node deliberately when choosing the Default method.

For Minimum Threshold, “Minimum” means the valley between two histogram peaks, not the image's minimum pixel value. Its smoothing operates on the histogram, not the image. The convergence limit is an early-stopping safety limit, not smoothing strength; a distribution that does not resolve two peaks can fail. Keep the scientific Stack/Slice threshold scope separate from the inspector histogram's display scope.

Boolean handling and RGB/RGBA luma reduction are VIPP extensions and are not claimed as ImageJ-exact. Infinite floating-point inputs are rejected. Independent ImageJ-generated golden parity is pending, so record the node explicitly and compare against the intended ImageJ reference before consequential use.

CPU and GPU boundaries in this workflow

Extract Channel, exact Preserve dtype conversion, Gaussian, Binary Threshold, Boolean Remove Small Objects, Boolean Fill Holes, connected components, Otsu, Canny, median, Sigma Filter, Remove Outliers (Binary), and background correction have GPU candidates only inside declared regions. The portable corridor introduced in 0.13.0a8 can use an explicitly described channel, convert uint8/uint16 to float32 without rescaling, apply Gaussian Blur and an exact finite Binary Threshold, clean the Boolean mask, and label it without an intermediate host transfer.

Prefer GPU keeps a first-step Extract Channel on CPU so only the selected channel is uploaded. Remove Small Objects supports Boolean masks in resolved 2D/3D Face or Full connectivity; integer-label cleanup remains CPU. Fill Holes supports those Boolean connectivity regions only when Maximum hole size = 0; a positive bounded size remains CPU. Connected Components still requires a Boolean call resolved as 2D or 3D. Unsupported calls receive an explained CPU decision, while invalid or explicitly non-fallback-safe calls fail planning.

Remove Outliers (Binary) processes each trailing YX plane independently using Fiji-compatible circular neighborhoods. Choose foreground removal to clean bright specks or background filling to close dark notches. The public CuPy region accepts Boolean masks and radius 0.5–25; canonical uint8 masks and larger valid radii use CPU. Review fine boundaries at the intended zoom because this majority cleanup can remove real thin structures.

VIPP never inserts a cast during calculation. When dtype is the only reviewed blocker, the node may show a GPU tip and an Add conversion button. That button inserts a visible, undoable Convert Dtype node; review its memory, threshold, and scientific consequences before accepting it.

Read each node badge after calculation and see the CPU/GPU operation matrix before authoring a provider choice. GPU eligibility says that an implementation matches its declared CPU contract; it does not validate the segmentation for your assay.

Minimum Threshold Failure Is Explicit

Minimum Threshold repeatedly smooths the exact histogram until two maxima remain, then selects the valley between them. Maximum smoothing iterations is a saved parameter from 1 to 10,000; the default is 10,000.

Some distributions do not have a suitable two-peak solution. If two maxima cannot be found, or the saved iteration limit is reached, the node reports a failure. VIPP does not silently substitute Otsu, reuse an old threshold, or return a plausible-looking mask. Treat the failure as evidence that this method is unsuitable for that input or that preprocessing needs review.

2D Versus 3D

For z-stacks, decide whether objects should be connected across Z.

• Use 2D processing when each YX plane should be independent.
• Use 3D processing when the object exists as one ZYX volume.
• Use Auto from axes only after checking that VIPP has interpreted the axes correctly.

Split Touching Objects

Use watershed when simple connected components merge neighboring objects:

mask
  -> Euclidean Distance Transform
  -> H-Maxima Markers
  -> Marker-Controlled Watershed
  -> Filter Labels By Volume

For a compact single-node starting point, use Auto Watershed From Mask.

Reference Workflow

Use the general cleanup example:

examples/otsu-red-channel-labels.json

This demonstrates red/TRITC-like channel segmentation, mask cleanup, labels, border clearing, volume filtering, and inspectable outputs.

To inspect the coherent Prefer-GPU corridor and its CPU fallbacks, open Portable GPU Segmentation Bridge or use:

examples/synthetic-gpu-segmentation-bridge.json

Its deterministic sample contains four retained 3D objects, one 19-voxel speck removed by the authored 22-voxel cutoff, and one 31-voxel enclosed cavity restored by Fill Holes. Those facts make each cleanup step independently inspectable; they do not validate the thresholds for another dataset.

What To Check

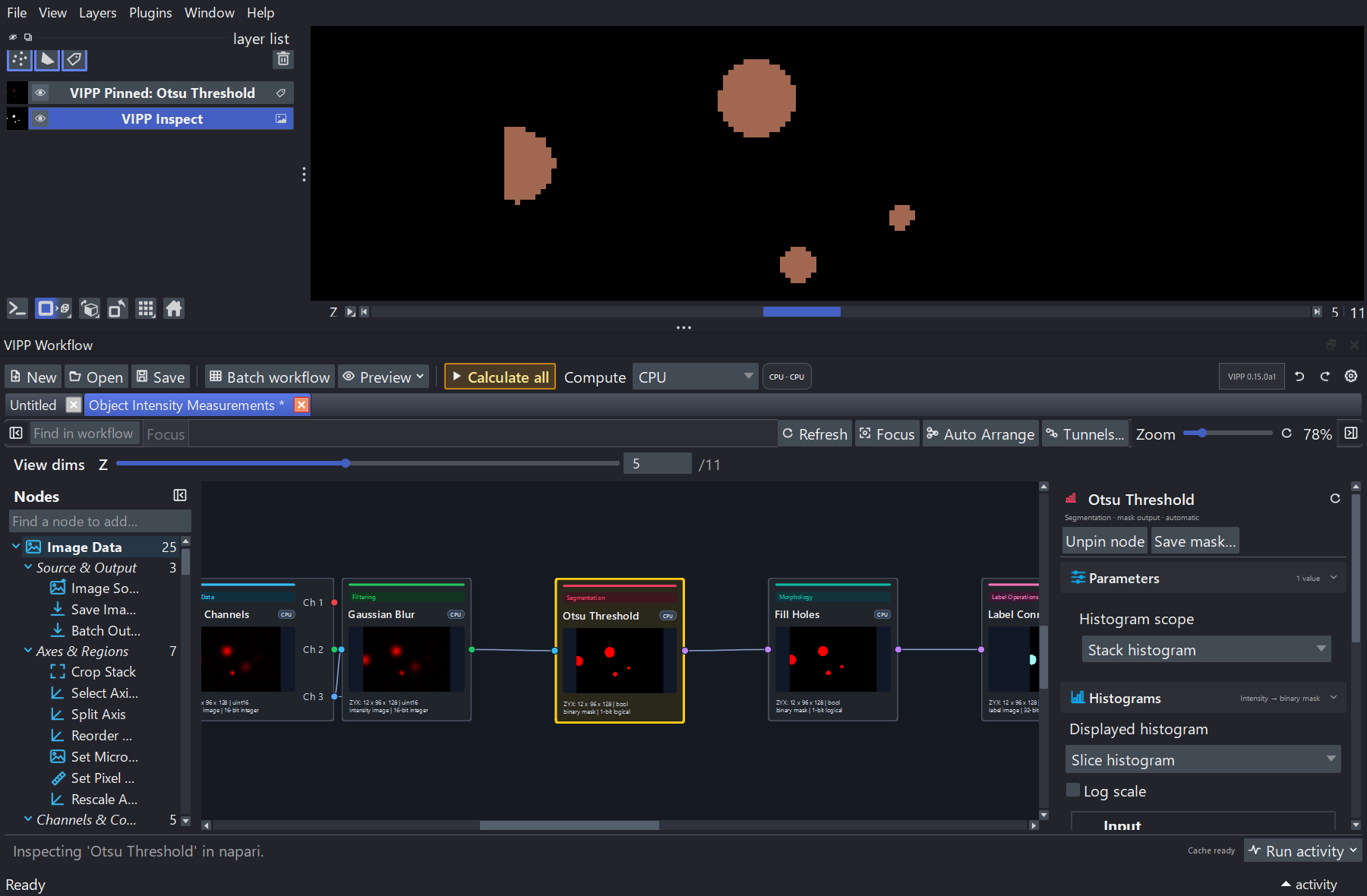

Inspect a decisive intermediate at full resolution. Here the threshold mask is pinned in napari while its graph node remains visible and the selected Stack histogram scope is recorded in the inspector history.

• Does the mask include the biology of interest?
• Are background/noise structures being labeled as objects?
• Are touching objects merged?
• Are small objects biological or artifacts?
• Are physical units correct before size filtering or measurement?
